01 / OUTBOUND ΔV6.06 KM/S
TMI 3.66MARS CAPTURE 2.31TCM 0.10
INTERPLANETARY SYSTEM INFRASTRUCTURE
HOLLOWAY
The system
between worlds.
Not a single spacecraft and not a collection of products. HOLLOWAY is a reusable operating architecture that carries human life, technical capability and return logic across the space where Earth can no longer close the loop.
286 MSYSTEM LENGTH0.5 GNOMINAL ROTATION900–1,000 DMISSION ENVELOPE≥ 20 YDESIGN-LIFE TARGET
HOLLOWAY / SYSTEM BASELINEASSEMBLE — TRANSIT — REMAIN — RETURN
01
THE SYSTEM DEFINITION
Transport is not the prelude
to the mission.
It is the mission.
Launch vehicles escape gravity. They do not protect a crew on Day 174, isolate a failed oxygen loop, preserve judgment during communications delay or create a credible path home.
HOLLOWAY begins where launch ends. Structure, propulsion, artificial gravity, shielding, power, thermal rejection, life support, logistics, autonomy and human continuity are treated as one operating system.
02
THE ROTATING WORLD
Outward
becomes down.
Before opening the architecture, follow one guided revolution. HOLLOWAY's geometry only becomes legible when its rotational frame is understood.
RATE2.1 RPM0.5 G RADIUS~102 MOUTER LIMIT~0.70 G
02B
THE FLIGHT MANOEUVRE SEQUENCE
Gravity pauses.
Trajectory takes command.
Every major propulsive event is a complete vehicle-state transition. HOLLOWAY departs despun, rotates only during cruise and returns to zero rotation before Mars capture.
01 / ACTIVE PHASEEarth Departure Burn
ROTATION STATE0 RPM / DESPUN
PROPULSION STATEMAIN ENGINES / ACTIVE

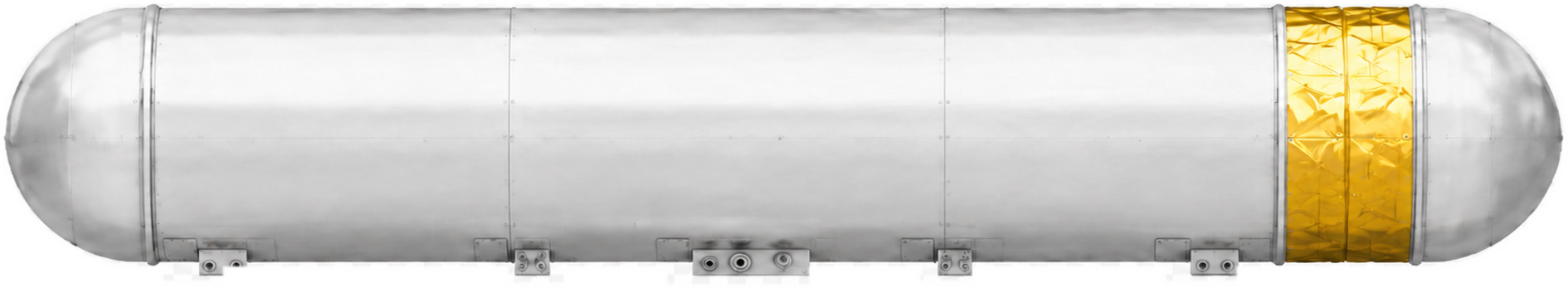

VEHICLE CONFIGURATIONDROP TANKS / ATTACHED
HOLLOWAY leaves Earth orbit in a stable, non-rotating configuration. The complete vehicle and its drop tanks accelerate together.
02C
THE INTERPLANETARY LEG
Mars is not where it is.
It is where we meet it.
HOLLOWAY follows a family of fast heliocentric transfer ellipses. Earth, Mars and the spacecraft move together; arrival occurs only because the destination advances into the intercept point.
MISSION ELAPSED TIMEDAY 00014 MAR 2048
EARTH → MARS DIRECT RANGE151.9 M KM / 94.4 M MI
TOTAL DISTANCE FLOWN0 KM / 0 MIROUND TRIP / 1051.1 M KM / 653.2 M MI
TRANS-MARS INJECTIONEARTHMARSHOLLOWAYOUTBOUNDRETURN
LIVE OUTBOUND TRADE FIELD
Time saved becomes energy carried.
Every outbound selection changes the flight time, Δv, propellant burden and exposure together.
80.3%IDEAL
195DAYS
EARTH DEPARTURE v∞3.26 KM/S
MARS ARRIVAL v∞4.19 KM/S
IDEAL FINAL MASS19.7%
TRAJECTORY CLASSFAST CREW TRANSFER
MISSION EPOCH / READINESS26 SEP 2046
EARTH DEPARTURE14 MAR 2048 · 195 DAYS OUT
MARS ARRIVAL25 SEPT 2048 · REFUEL
TRANS-EARTH INJECTION17 FEB 2050 · 510 DAY STAY
EARTH RETURN03 NOV 2050 · 964 DAYS FLIGHT MISSION
HOLLOWAY / CHAPTER 33.2 + APPENDIX XII
26 September 2046 is the earliest-readiness epoch, not an invented launch window. Each outbound profile therefore uses its next viable departure after that date. The selected return profile determines the Mars-orbit servicing interval and Trans-Earth Injection date.
PLANETARY POSITIONS · TRAJECTORY PLANNING MODELTHE DISTANCE IS ONLY THE BEGINNING
Getting to Mars is not a matter of pointing a spacecraft at a red dot. It is a timed negotiation with distance, velocity, exposure, propellant and two moving planets—and the way home must be designed before departure. This model shows a realistic mission path to Mars and back. What people need once they arrive is the next architecture: SETTLE-2.
02
THE ORIENTATION DECK
One architecture.
Ten connected systems.

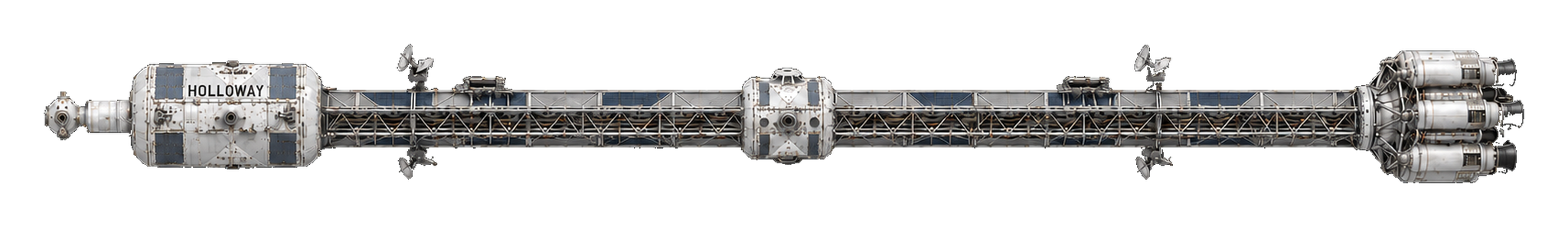

Begin with the complete HOLLOWAY. Separate the architecture to expose its primary sections, then select a system to open its operating role. The detailed engineering chapters follow from this map.
CONCEPTUAL SYSTEM VISUALIZATION · PROPORTIONS APPROXIMATE · NOT FOR ENGINEERING USE
02 / PRESSURISED SECTION
Cargo & Habitat
The inhabited world: command, core systems, radiation refuge, community spaces, medical capability, stores and the closed loops that keep seven people alive.
03
SIX OPERATING STRANDS
No subsystem
operates alone.
Each strand has its own hardware, but none has an independent outcome. Open a strand to inspect its function, interfaces, failure propagation and qualification gate.
01 / CARRYStructure + mass
A 286-metre load path joins habitat, working truss, zero-g hub and propulsion mass into one rotating architecture.
GRAVITY · DOCKING · SHIELDINGOPEN OPERATING BRIEF
CARRY / SYSTEM RESPONSIBILITY
Carry pressure, thrust, docking, spin and maneuver loads without allowing one local deformation to become a vehicle-wide loss.
- COUPLED INTERFACES
- Habitat stack · rotating truss · zero-g hub · propulsion spine · tanks · docking interfaces
- FAILURE PROPAGATION
- Structural damage changes rotation, fluid behavior, pointing accuracy, shielding geometry and the crew’s ability to reach a safe zone.
- QUALIFICATION GATE
- Full-scale interface articles, coupled load-and-spin analysis, docking impulse trials and inspection of every primary load path.
02 / SUSTAINClosed living loops
Atmosphere, water, food, waste, medicine and thermal control are coupled resources—not independent appliances.
CREW · ECLSS · THERMALOPEN OPERATING BRIEF
SUSTAIN / SYSTEM RESPONSIBILITY
Keep seven people biologically and operationally viable across a nominal 1,000-day mission and a 1,300-day survival envelope.
- COUPLED INTERFACES
- Atmosphere · water · waste · food · microbiology · thermal rejection · medical demand
- FAILURE PROPAGATION
- A declining recovery rate becomes stored-mass loss; contamination becomes medical load; heat rejection becomes an atmosphere and power problem.
- QUALIFICATION GATE
- Long-duration sealed-habitat campaigns with representative crew loads, deliberate faults, maintenance and measured mass balance.
03 / MOVEPropulsion + balance
CH₄/LOX propulsion, segmented tanks and mass redistribution connect transfer performance to spin stability and return logic.
TMI · MOI · RETURNOPEN OPERATING BRIEF
MOVE / SYSTEM RESPONSIBILITY
Deliver injection, correction, capture and return capability while keeping thrust, propellant state and rotating mass inside one controllable envelope.
- COUPLED INTERFACES
- Main propulsion · RCS · drop tanks · feed systems · navigation · attitude control · structural balance
- FAILURE PROPAGATION
- A propulsion fault can alter trajectory and spin together; propellant transfer or consumption can move the center of mass beyond controllable limits.
- QUALIFICATION GATE
- Integrated hot-fire, feed-system, slosh, spin-balance and aborted-burn recovery tests before orbital mission validation.
04 / PROTECTRadiation + refuge
Water, food, waste and hydrogen-rich materials become both consumables and shielding; occupancy changes with the environment.
DOSE · SHELTER · EVAOPEN OPERATING BRIEF
PROTECT / SYSTEM RESPONSIBILITY
Manage chronic GCR exposure, episodic solar-particle events and local operational hazards through geometry, inventory and crew location.
- COUPLED INTERFACES
- Storm shelter · distributed stores · dosimetry · vehicle attitude · EVA planning · medical monitoring
- FAILURE PROPAGATION
- Consuming or relocating mass changes protection. A radiation event simultaneously changes occupancy, power, thermal load, work and medical priorities.
- QUALIFICATION GATE
- Mass-geometry verification, distributed dose mapping, timed shelter transitions and full-duration protected-operation trials.
05 / MAINTAINRobotics + access
External rails, manipulators, inspection systems and service paths make repairability part of the primary architecture.
TACO · EVA · SPARESOPEN OPERATING BRIEF
MAINTAIN / SYSTEM RESPONSIBILITY
Detect degradation before functional loss, isolate the affected unit and restore capability from inside the pressure envelope whenever possible. External TACO robots and walking manipulators inspect the truss, radiators, tanks, communications systems and propulsion interfaces; crew EVA remains the final recovery layer, not the routine maintenance plan.
- COUPLED INTERFACES
- Internal service corridors · line-replaceable units · TACO rail robots · walking manipulators · inspection sensors · pressure and fluid isolation · spares inventory · tools · digital configuration control · EVA airlocks
- FAILURE PROPAGATION
- Redundancy disappears when the failed unit cannot be reached, isolated or replaced. A seized connector, inaccessible valve or missing compatible spare can turn two healthy backup paths into unusable hardware. Deferred maintenance also increases crew workload, EVA exposure and the probability that independent margins collapse into one common failure.
- QUALIFICATION GATE
- Representative inspection, isolation and replacement campaigns under rotation, vacuum and suited conditions. Qualification includes blind sensor faults, jammed mechanisms, contaminated interfaces, unavailable spares, loss of one robotic path and recovery while a second system is already degraded.
06 / DECIDECrew + ARI
Latency removes Earth from the immediate control loop. Authority, autonomy, diagnostics and system memory must operate locally.
FDIR · DTN · GOVERNANCEOPEN OPERATING BRIEF
DECIDE / SYSTEM RESPONSIBILITY
Preserve informed local authority when Earth is minutes away, incomplete information is normal and several systems degrade at once.
- COUPLED INTERFACES
- Crew command · ARI · fault detection/isolation/recovery · medical authority · DTN communications · mission memory
- FAILURE PROPAGATION
- Bad prioritization can be more dangerous than the first fault. Automation without transparent limits can remove the crew’s ability to understand or recover the system.
- QUALIFICATION GATE
- Crew-in-the-loop incident campaigns with delayed Earth support, conflicting telemetry, manual override and auditable ARI decisions.
COUPLED FAILURE EXAMPLE
RADIATOR DAMAGE→THERMAL LOAD→CRYO BOIL-OFF→ΔV MARGIN→CREW LOAD
A local fault becomes a mission condition. HOLLOWAY is designed around the chain, not merely the broken component.
04
THE 1,000-DAY SURVIVAL SYSTEM
Life support is not
water and oxygen.
It is an artificial Earth.
A Mars round trip is a sealed-world survival mission: 200–250 days outbound, 400–500 days in the Martian system and another 200–250 days home.
HOLLOWAY is therefore not dimensioned merely for the nominal journey. Its reference envelope extends to 1,200–1,300 days—because a missed window, degrading recovery rate, illness or contamination does not care what the original schedule promised.
HOLLOWAY / ECLSS—SYSBOARDINTEGRATED SURVIVAL CONTROL
LIVE REFERENCE MODEL
SYSTEM CONDITION / ATMNOMINAL
101 kPaCABIN PRESSURE
Atmosphere
Maintains breathable cabin chemistry across every occupied zone.
- MONITORED
- O₂ / CO₂ / N₂ / VOC / humidity / differential pressure
- DEPENDENCIES
- Power · water · thermal · fire control
- CASCADE IF LOST
- Hypoxia, CO₂ accumulation or toxic contamination propagates directly into crew performance.
- SURVIVAL MARGIN
- 3 independent processing paths
MISSION ENVELOPE
200–250OUTBOUND DAYS
+400–500MARS / PHOBOS DAYS
+200–250RETURN DAYS
≈ 1,000 DAYSDESIGN MARGIN / 1,200–1,300 DAYSTHE CLOSED WORLD
Every resource
returns as another.
Water becomes drinking supply, hygiene medium, thermal mass, ballast and radiation shielding. Carbon dioxide becomes process input. Waste returns as water, nutrients, gas or protective mass. Food is nutrition, microbiology, morale and time.
The system must control not only quantities, but quality: trace contaminants, microbial ecology, odor, humidity, lighting, circadian rhythm and the psychological acceptance of living inside the same loops for nearly three years.
HOLLOWAYSURVIVALCREW + ARI
ATMOSPHEREWATERFOOD + BIOMASSWASTE + HYGIENETHERMALSHIELDING>90%WATER-LOOP TARGET80–95%OXYGEN RECOVERY ENVELOPE30 DAYSSEALED SURVIVAL CACHE≥3×CRITICAL PATH REDUNDANCY
Atmosphere · Water · Food
Electrolysis, CO₂ removal, Sabatier recovery, urine and gray-water processing, stored food, hydroponics and biological supplementation form nested—not perfect—loops.
LOOPS BUY EFFICIENCYStores · Shielding · Ballast
Water, oxygen, food and emergency reserves remain physical certainty when intelligent loops degrade. Their mass simultaneously protects the crew and preserves rotational balance.
MASS BUYS CERTAINTYHealth · Microbiome · Psychology
Nutrition, microbial stability, sleep, light, hygiene, scent, privacy, medical demand and crew behavior continuously alter both consumption and system performance.
THE HUMAN IS INSIDE THE LOOPIsolation · Repair · Black-Ship
Zonal isolation, replaceable units, internal maintenance access, spare inventories and a 72-hour minimum-power survival mode prevent one failure from becoming the end of the mission.
FAILURE MUST REMAIN SURVIVABLEARI / GUARDIAN OF THE LOOPSNot monitoring.
Not monitoring.
Prediction.
ARI fuses cabin chemistry, water quality, microbial signals, hardware degradation, inventory, crew biometrics and the remaining mission timeline into one survival-margin model. It must see the cascade while options still exist.
SENSE→MODEL→PREDICT→ISOLATE→RECOVER
THE QUALIFICATION PROBLEM
No system on Earth
has proved this yet.
Components have heritage. Partial loops have flown. Analog habitats have generated evidence. But no integrated life-support architecture has sustained a crew for 1,000 days under deep-space radiation, partial gravity, isolation, maintenance load and absence of resupply.
HOLLOWAY therefore treats verification as part of the system: component endurance, deliberate fault injection, sealed-habitat trials, crew-in-the-loop operations and phased orbital validation before departure.
- 01COMPONENT>10,000 HOUR ENDURANCE
- 02INTEGRATED LOOPFAULT-INJECTED HABITAT TESTS
- 03CREW IN LOOP7 → 30 → 90 DAY CAMPAIGNS
- 04ORBITAL GATEFULL-LOAD SHAKEDOWN
- 05MISSION VALIDATIONCONTINUOUS IN-FLIGHT PROOF
GRAVITY IS AN OPERATING MODE
Biology shapes
the machine.
The long axis is not visual drama. It creates the radius for a nominal partial-gravity environment while the central hub remains available for docking, communications and zero-g operations. Spin-up, balance, fluid distribution, thrust and crew adaptation therefore belong to the same control problem.
0 GHUB / SAFE MODE0.16 GLUNAR REFERENCE0.38 GMARS REFERENCE0.50 GHOLLOWAY NOMINAL1.00 GEARTH REFERENCE
05
OPERATIONS ACROSS TIME
A mission is a cycle.
Not a launch event.
The architecture earns its value by changing role without losing continuity. It is assembled, operated, handed over, maintained and used again.
ASSEMBLE
Modular launch, orbital construction, commissioning and integrated qualification.
DEPART
Drop-tank-supported injection, structural verification and transition into cruise.
SUSTAIN
Rotation, closed-loop life support, maintenance and latency-aware operations.
CAPTURE
Orbit insertion, mass rebalance and handoff to SETTLE assets.
REMAIN
Relay, fallback habitat, depot, science platform and operational reserve.
RETURN
Refuel, transfer, recovery, audit, refurbishment and reassignment.
Full human-support envelope under nominal rotation.
Environmental capacity reallocated to payload and autonomy.
Relay, depot, fallback habitat, medical buffer and mission command.
System preservation and readiness between assignments.
LOCAL AUTHORITY
Seven humans.
An eighth continuity.
ARI is not a mascot or a voice interface. It links health monitoring, fault isolation, inventory, power, navigation, delayed communications and mission memory. But autonomy does not erase command: HOLLOWAY retains distributed human authority, manual recovery and hard-reset paths.
ARI / OPERATING LAYERASSIST · ANTICIPATE · ISOLATE · REMEMBER
Predictive diagnostics / fault-tree management / latency mediation / knowledge continuity
Psychological stability is not a crew trait added after selection.
It is a system condition shaped by privacy, light, gravity, work, authority and time.
06
THE CONNECTIVE INFRASTRUCTURE
HOLLOWAY does not
replace the architecture.
It makes the handoff possible.
MAGELLAN supplies recurrent transport logic. PRIME proves persistent surface operations. Robotics & AI cross every layer. HOLLOWAY carries the complete system into the interplanetary gap and remains available when the destination needs a relay, refuge, depot or return path.
REFERENCE ARCHITECTURE / VERSION 1.3 · REVISION 5
555 pages.
One question.
What must still be working on Day 174?
39 CORE CHAPTERS14 APPENDICESPHYSICS + LOGISTICSBIOLOGY + PSYCHOLOGYFAILURE + RETURN
